Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

TECHNICAL SPECIFICATIONS

E-BIKE

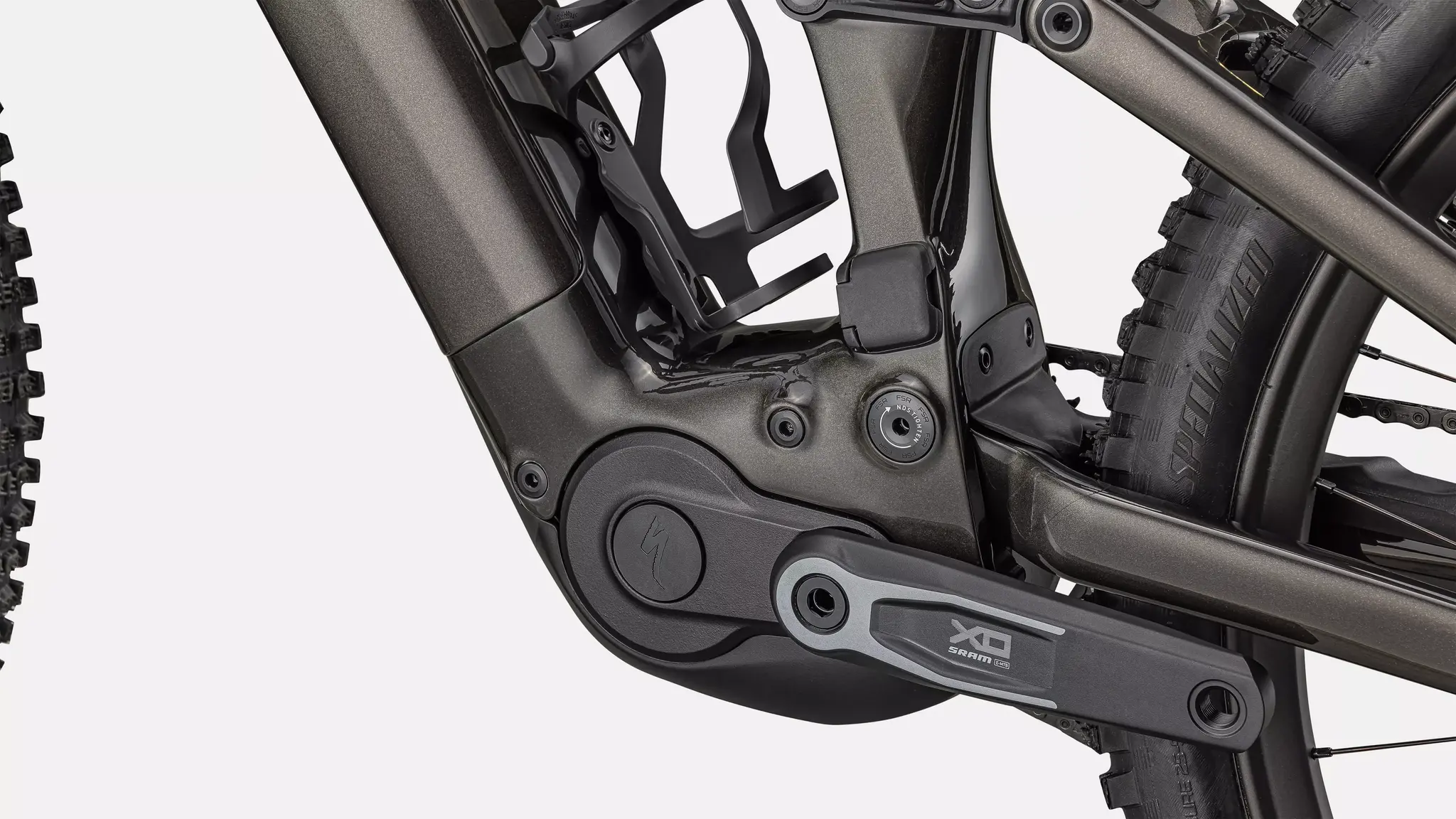

• Motor: All New Specialized 3.1 Motor, 101Nm torque, 666W power
• Battery: 840Wh battery

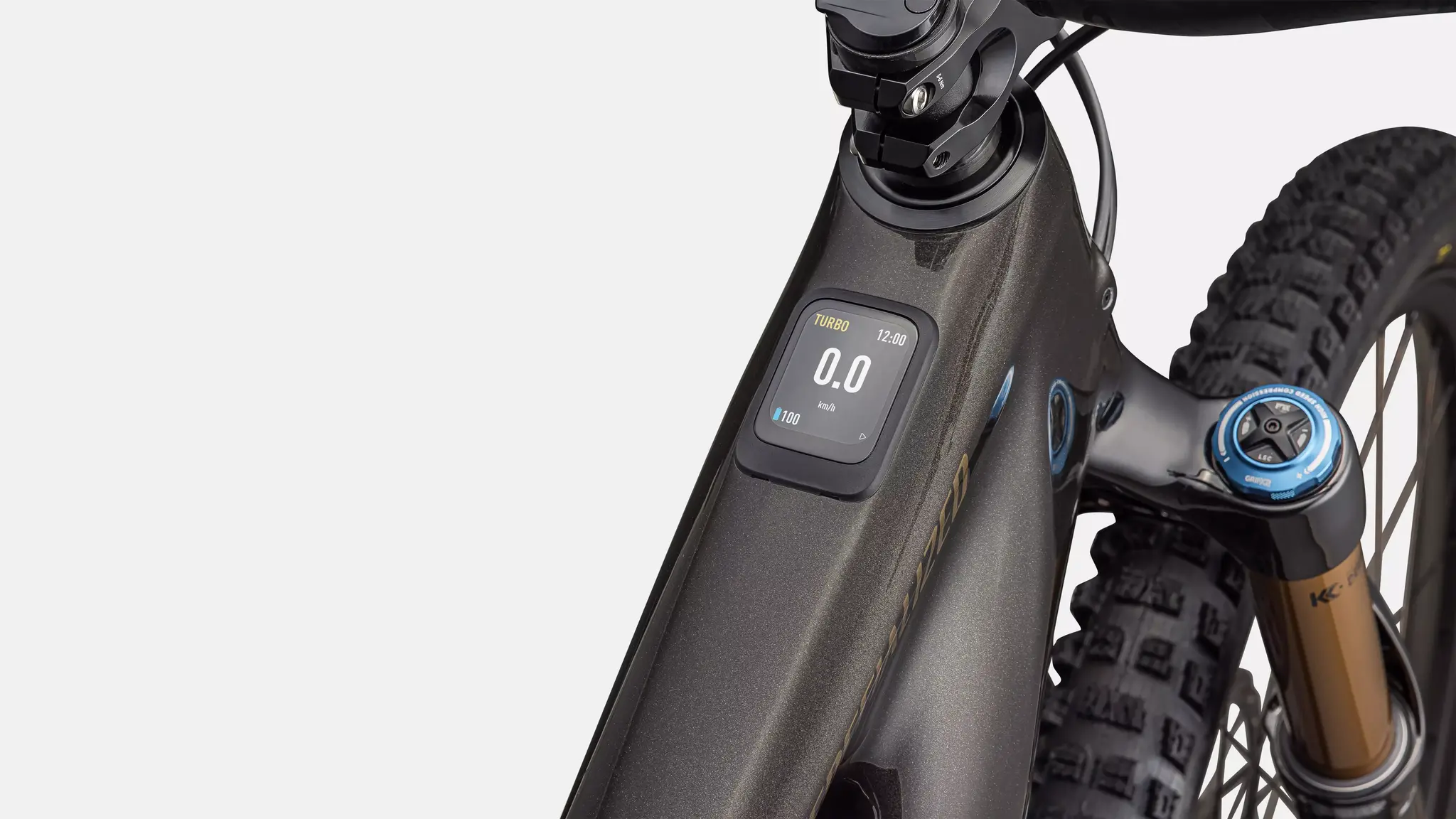

• UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
• Charger: Specialized 4amp charger

FRAMESET

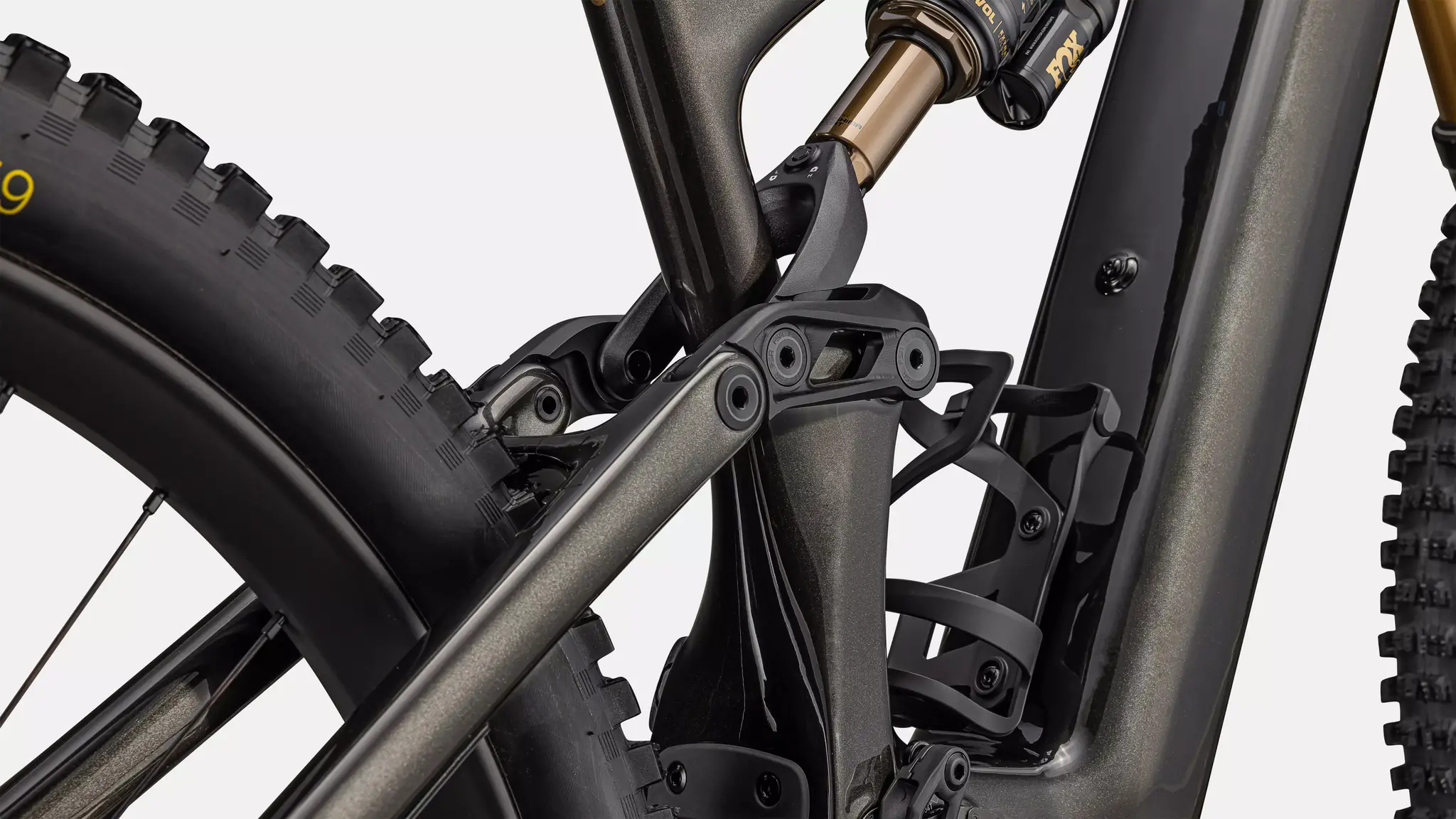

• Frame: All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
• Seat Binder: Alloy, 38.6mm

SUSPENSION

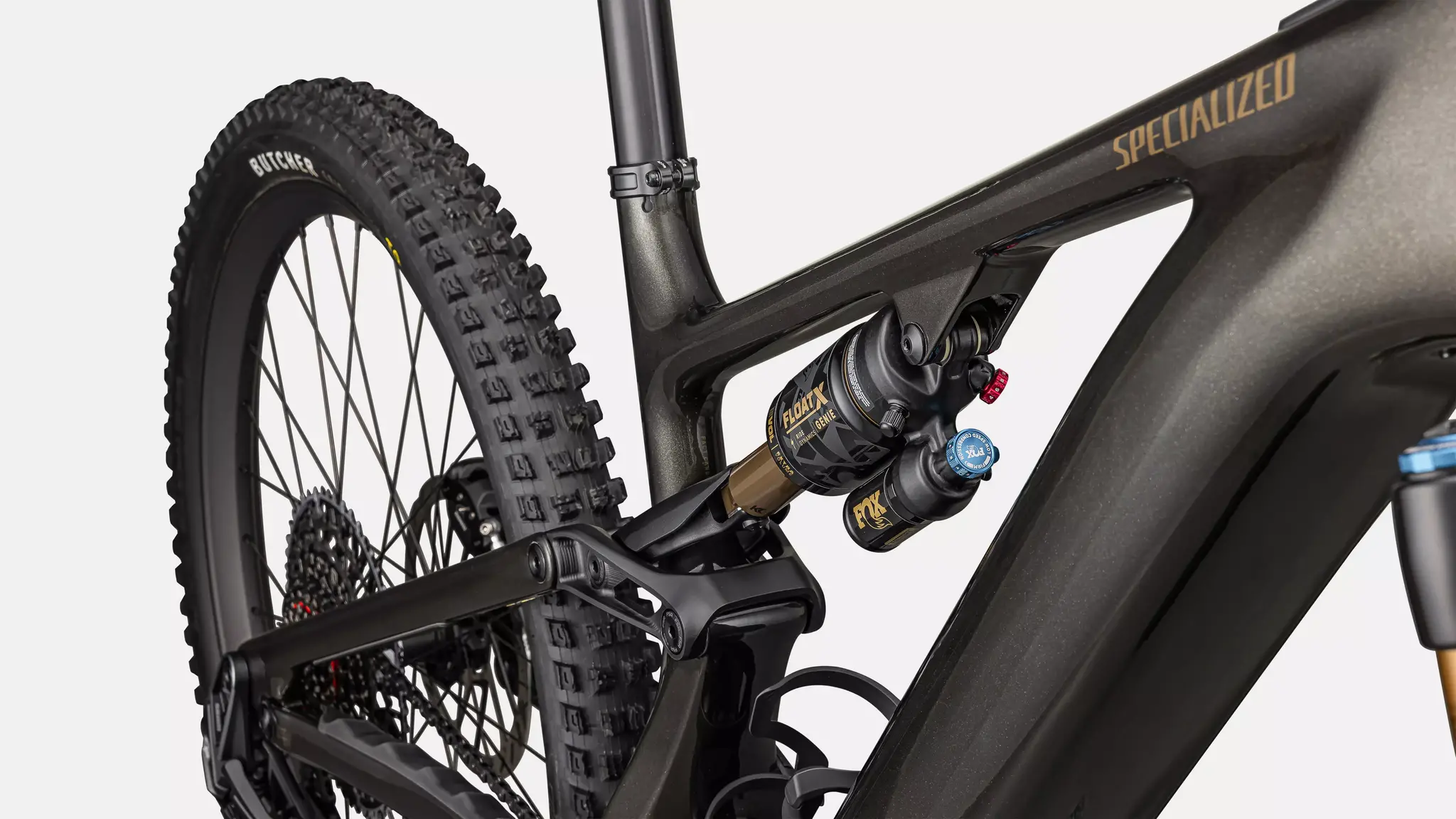

• Rear Shock: FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
• Fork: FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

BRAKES

• Front Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
• Rear Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

DRIVETRAIN

• Shift Levers: SRAM AXS POD Controller
• Rear Derailleur: SRAM X0 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
• Cassette: SRAM XO 1295, 12 speed, 10-52
• Chain: SRAM X0
• Crankset: SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm
• Chainrings: SRAM 34T T-Type chainring, 104 BCD, steel

WHEELS & TIRES

• Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
• Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h
• Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
• Rear Wheel: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h
• Inner Tubes: Standard, Presta valve

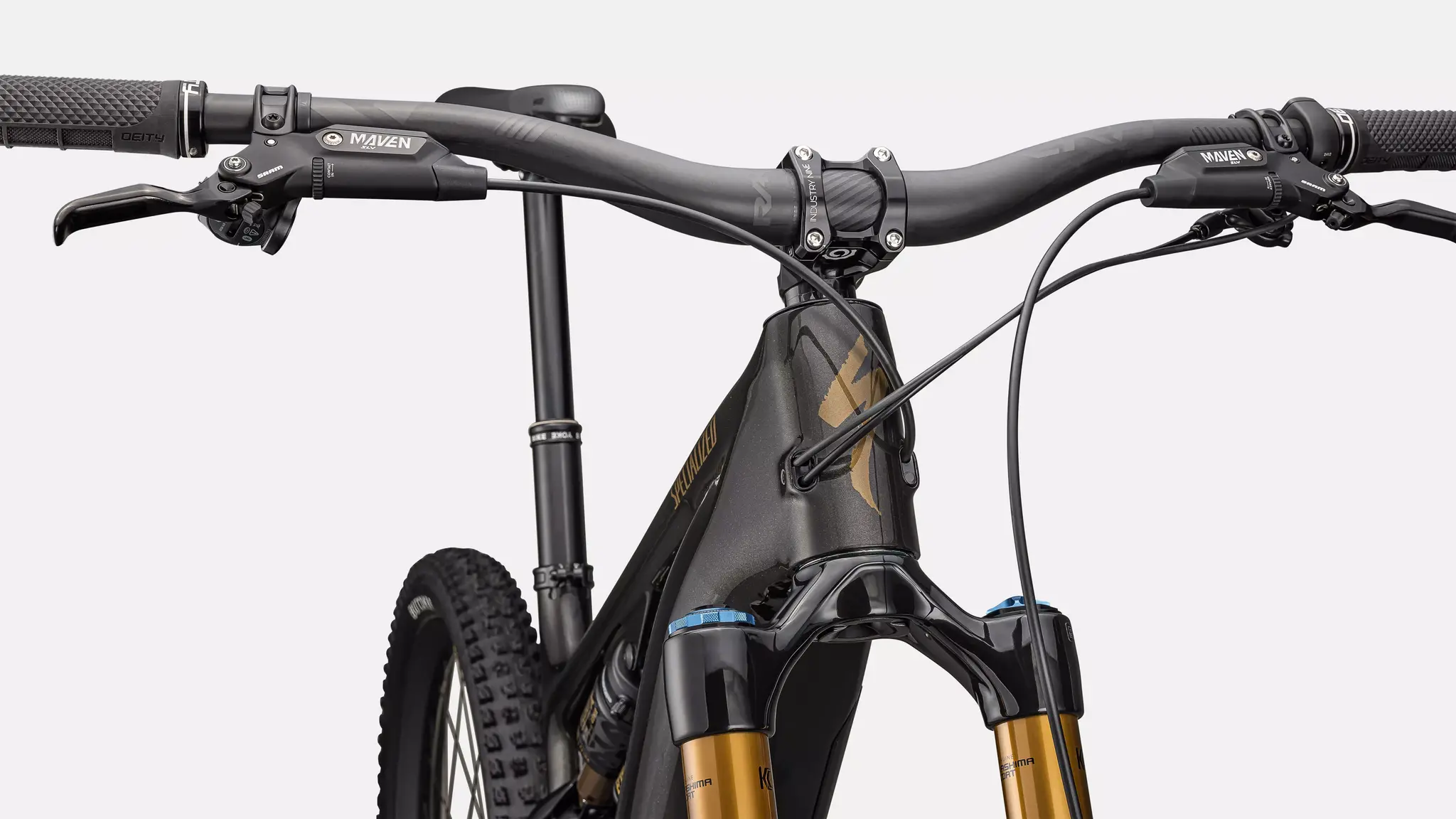

COCKPIT

• Stem: Industry 9 Mountain stem, 35mm clamp, 40mm length
• Handlebars: RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
• Grips: Deity Lockjaw grips
• Saddle: Bridge Mimic Expert, Hollow Ti rails
• SeatPost: Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

ACCESSORIES

• SWAT: SWAT internal downtube storage

PRODUCT DETAILS

• Product ID: 218702
• Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

WEIGHT

• Weight: 23.94kg (52 lb, 12.5 oz)

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
