More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Model Description

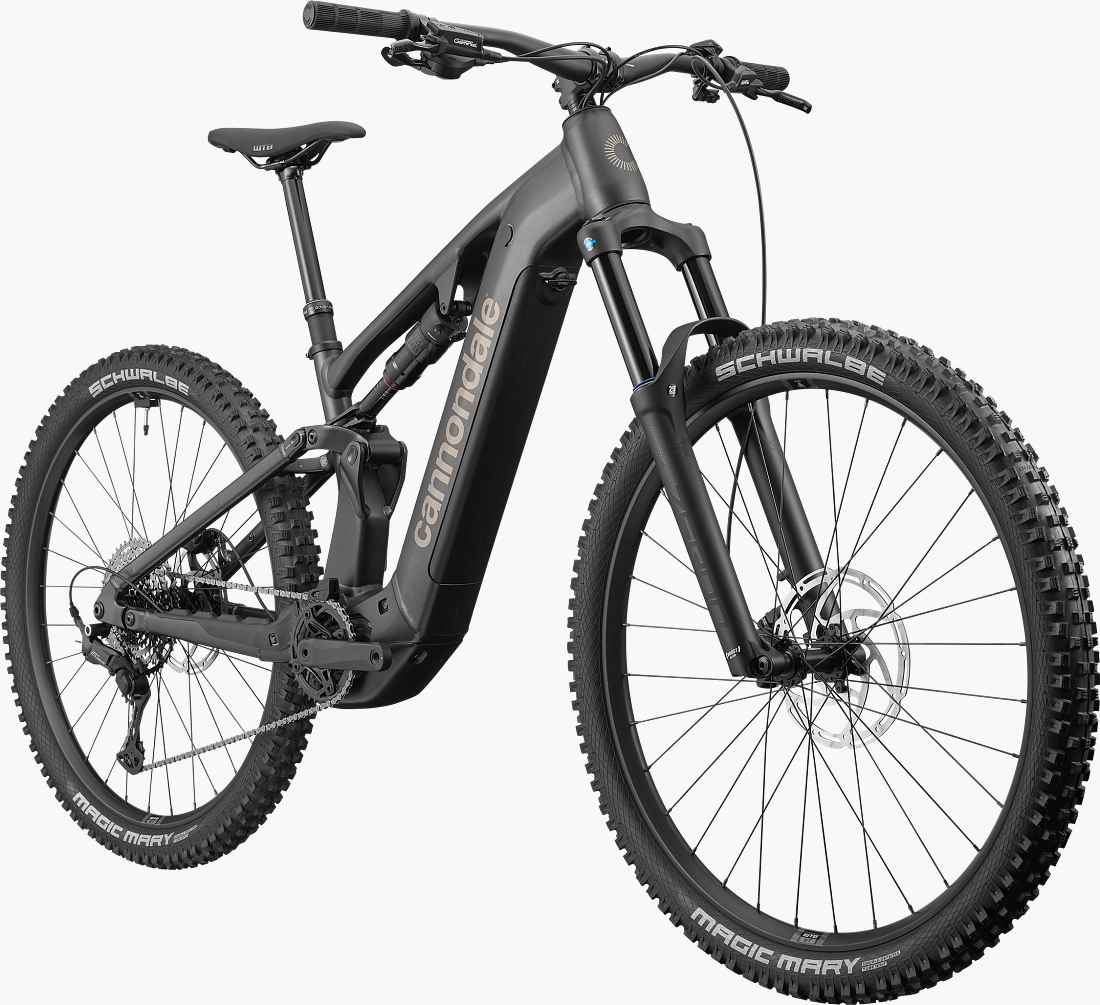

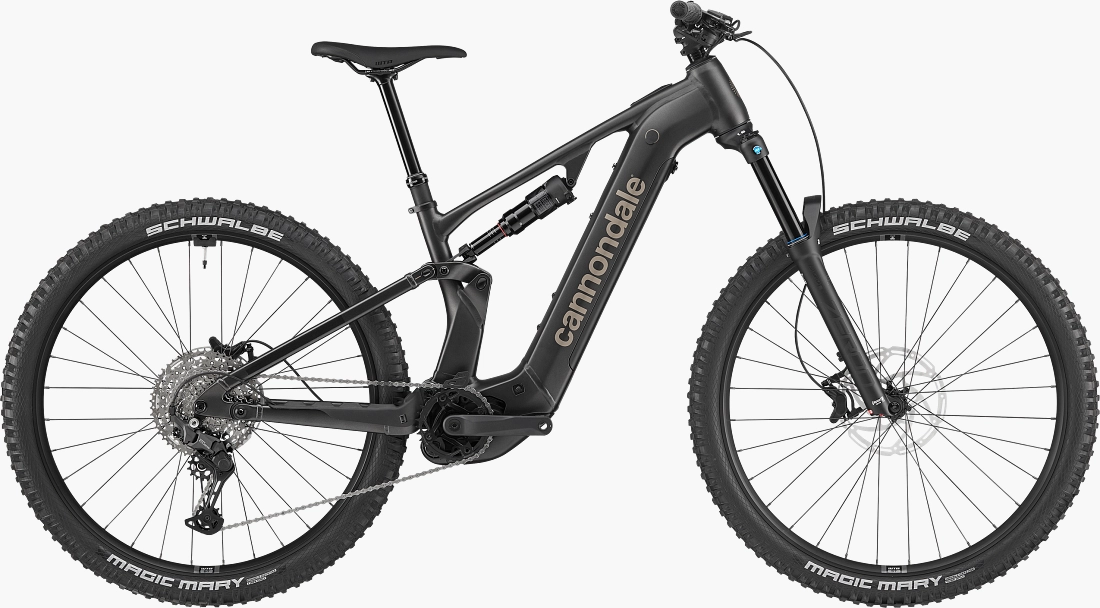

Moterra 4 strips things down to the essentials—reliable, rugged, and ready for anything. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and big 600Wh battery deliver smooth, sustained power, with more than enough range to keep things interesting. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.
What it's for
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
- Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
- Interchangeable 600Wh battery provides an ideal balance of range and light weight
- Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
- Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
Details
Frameset
-
Frame
Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
-
Fork
SR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
-
Headset
Acros ICR, 1.5" to 1.8", sealed bearings
-
Rear Shock
RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
E-System
-
Drive Unit

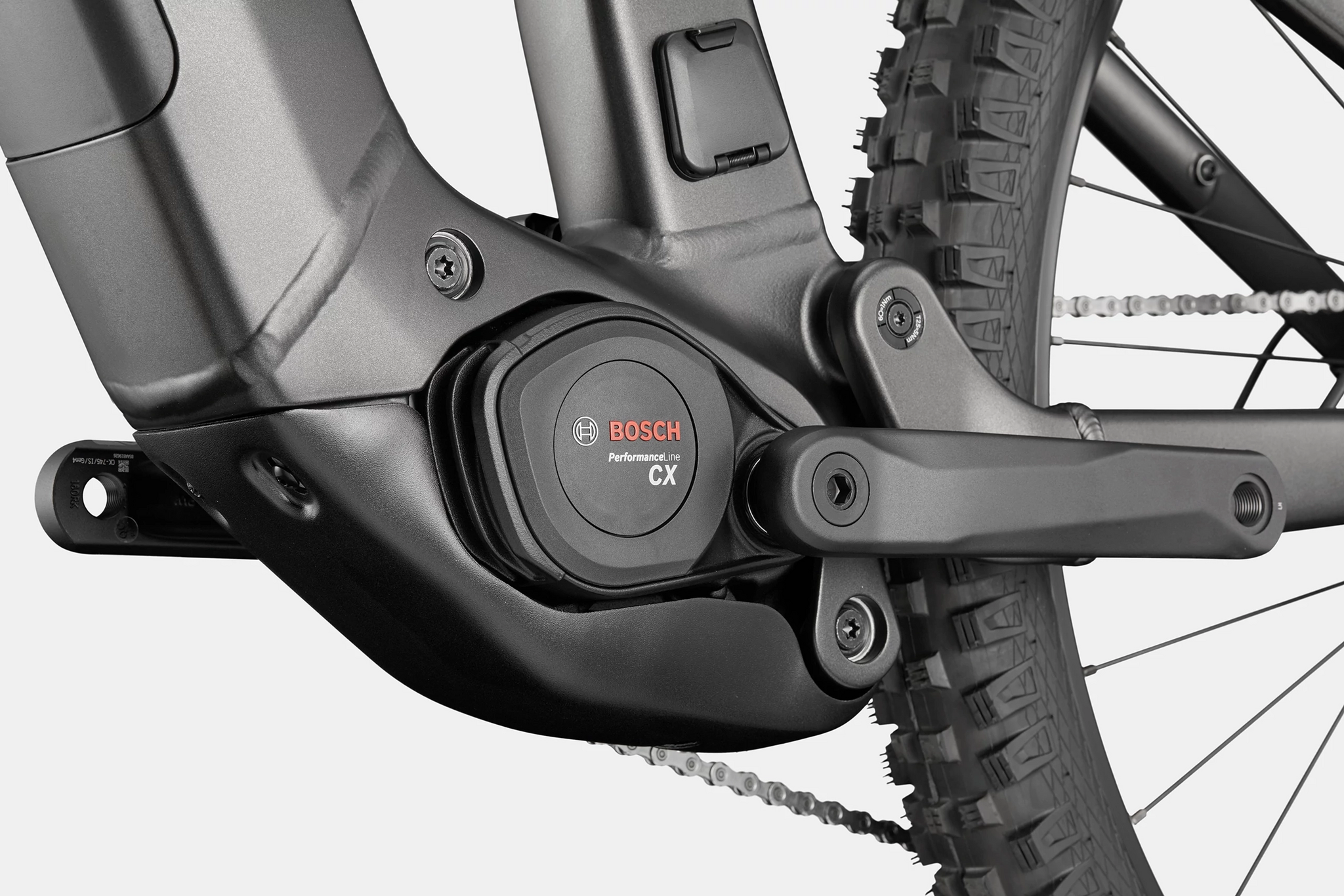

Bosch Performance Line CX
-
Battery
Bosch PowerTube, 600Wh
-
-
-
Drivetrain
-
Rear Derailleur
Shimano CUES U6000, LinkGlide
-
Shifters
Shimano CUES U6000, 11-speed, LinkGlide
-
Chain
Shimano LG500, LinkGlide, 11-speed
-
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
-
Rear Cogs
Shimano CUES LG400, LinkGlide, 11-50, 11-speed
Brakes
-
Brakes
Tektro Gemini SL 4-piston hydraulic disc, 203mm rotors
-
Brake Levers
Tektro Gemini SL hydraulic disc
Wheels
-
Rims
WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
-
Spokes
DT Swiss Champion 2.0
-
-
-
Hubs
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC600, 12x148mm thru-axle, centerlock
-
Tires
Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, Tube
-
Front Tire
(F) Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR
-
Rear Tire
(F) Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR
Components
-
Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
-
Stem
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
-
Grips
Cannondale TaperRidge
-
Saddle
WTB Silverado Medium
-
Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
-
Extra 1
Bosch PowerMore range extender compatib
