Features

E-Bike

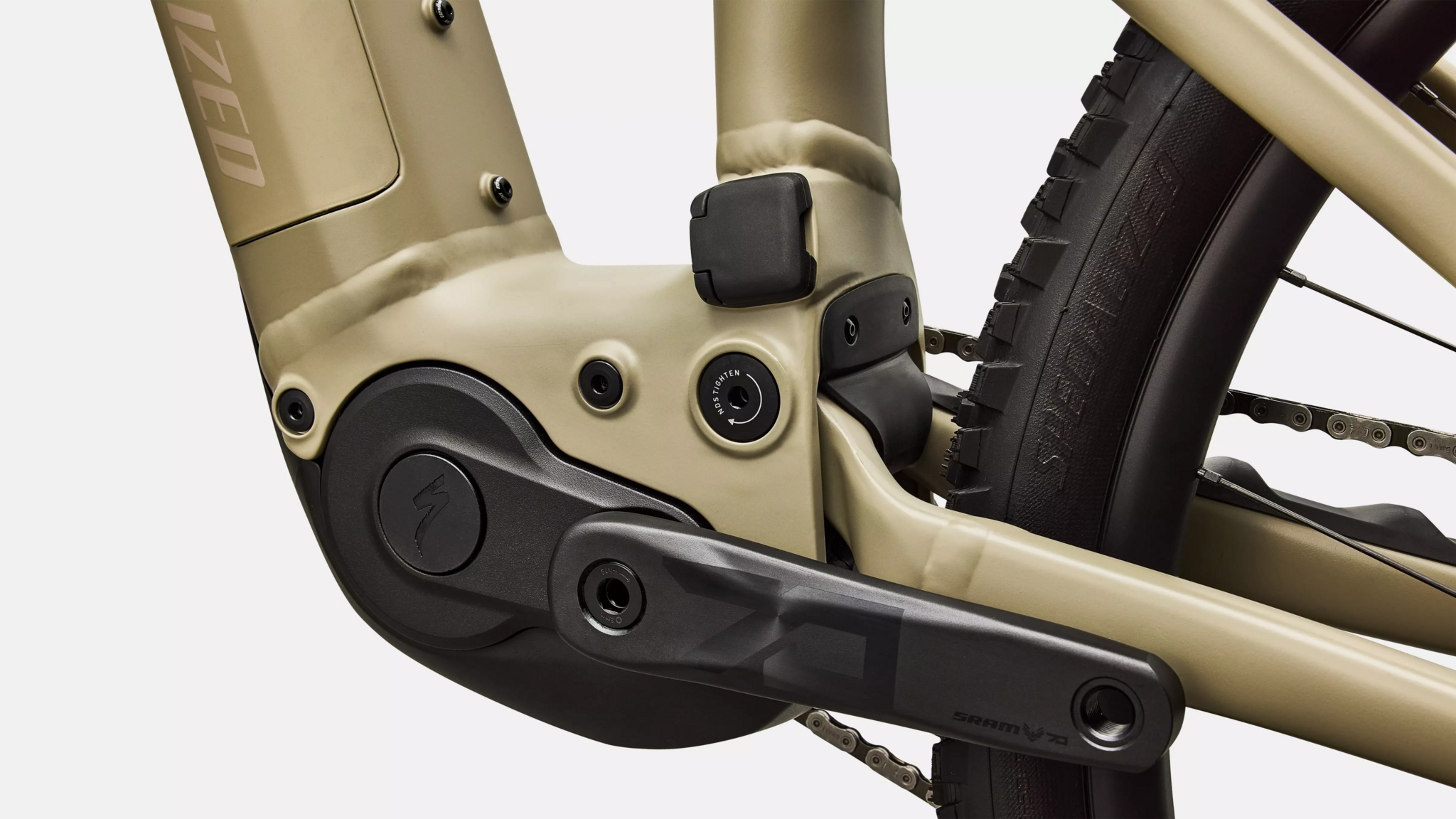

• Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
• Battery: 840Wh battery

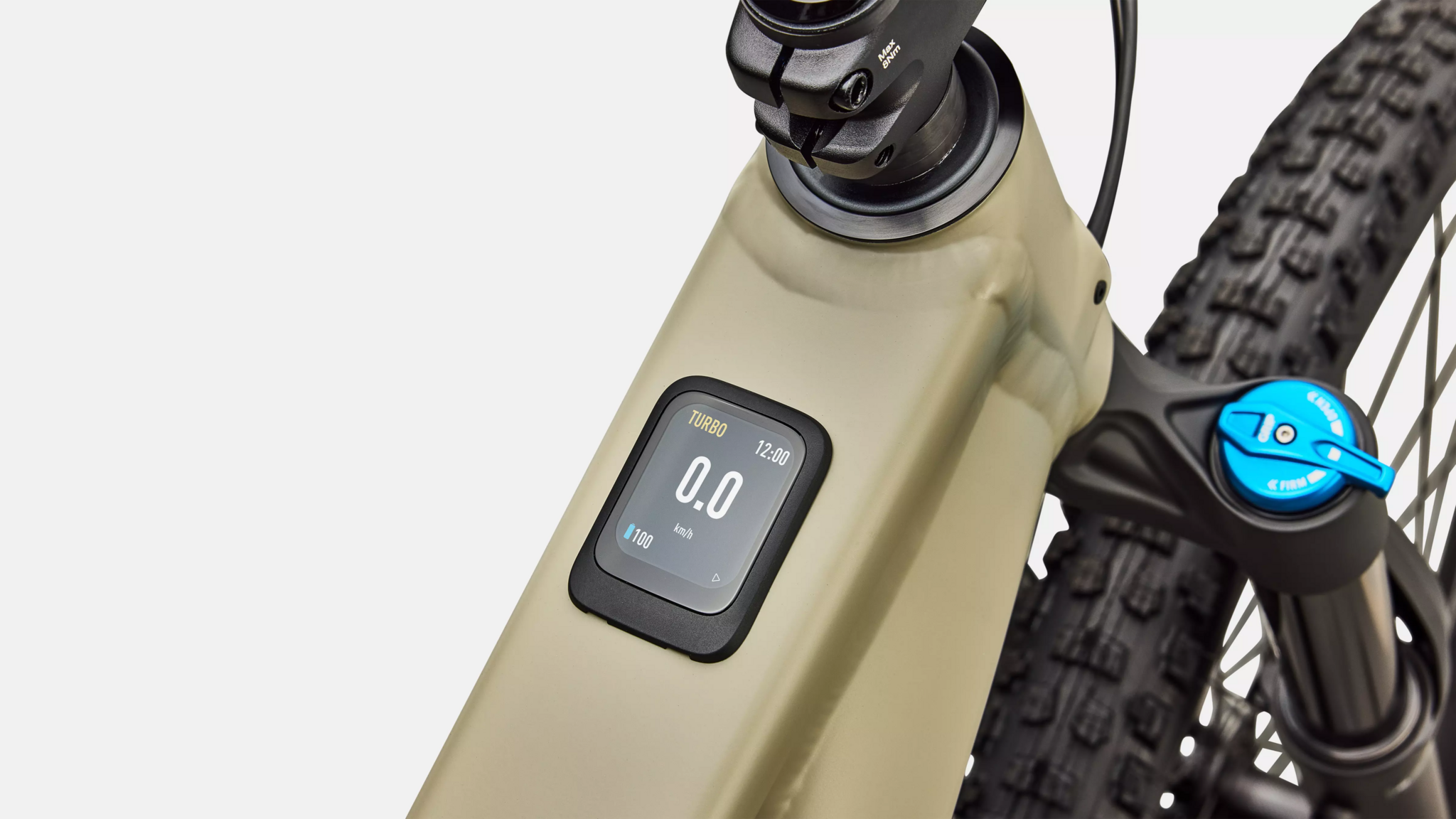

• UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
• Charger: Specialized 4amp charger

Frameset

• Frame: M5 Aluminum, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
• Seat Binder: Alloy, 38.6mm

Suspension

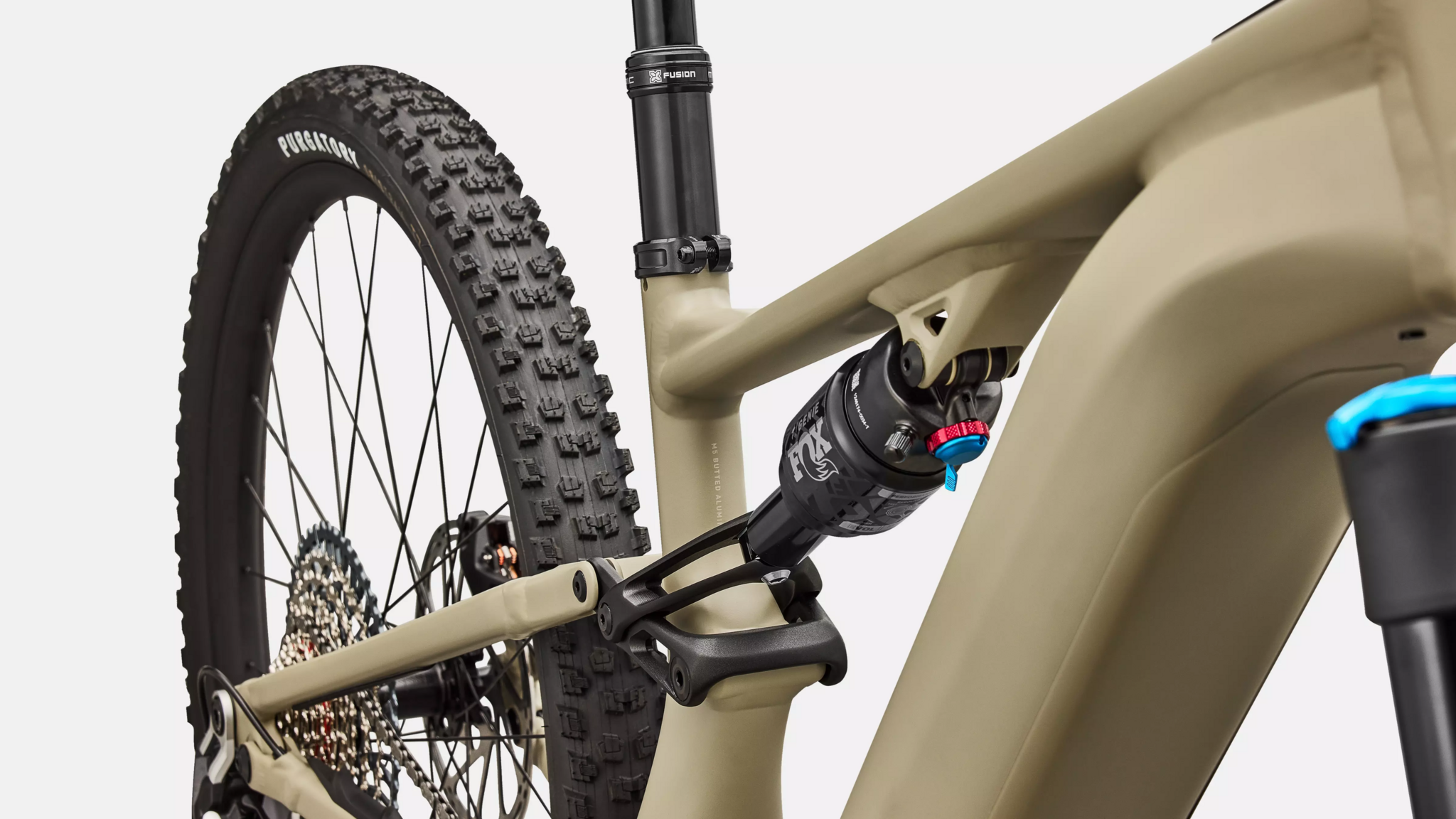

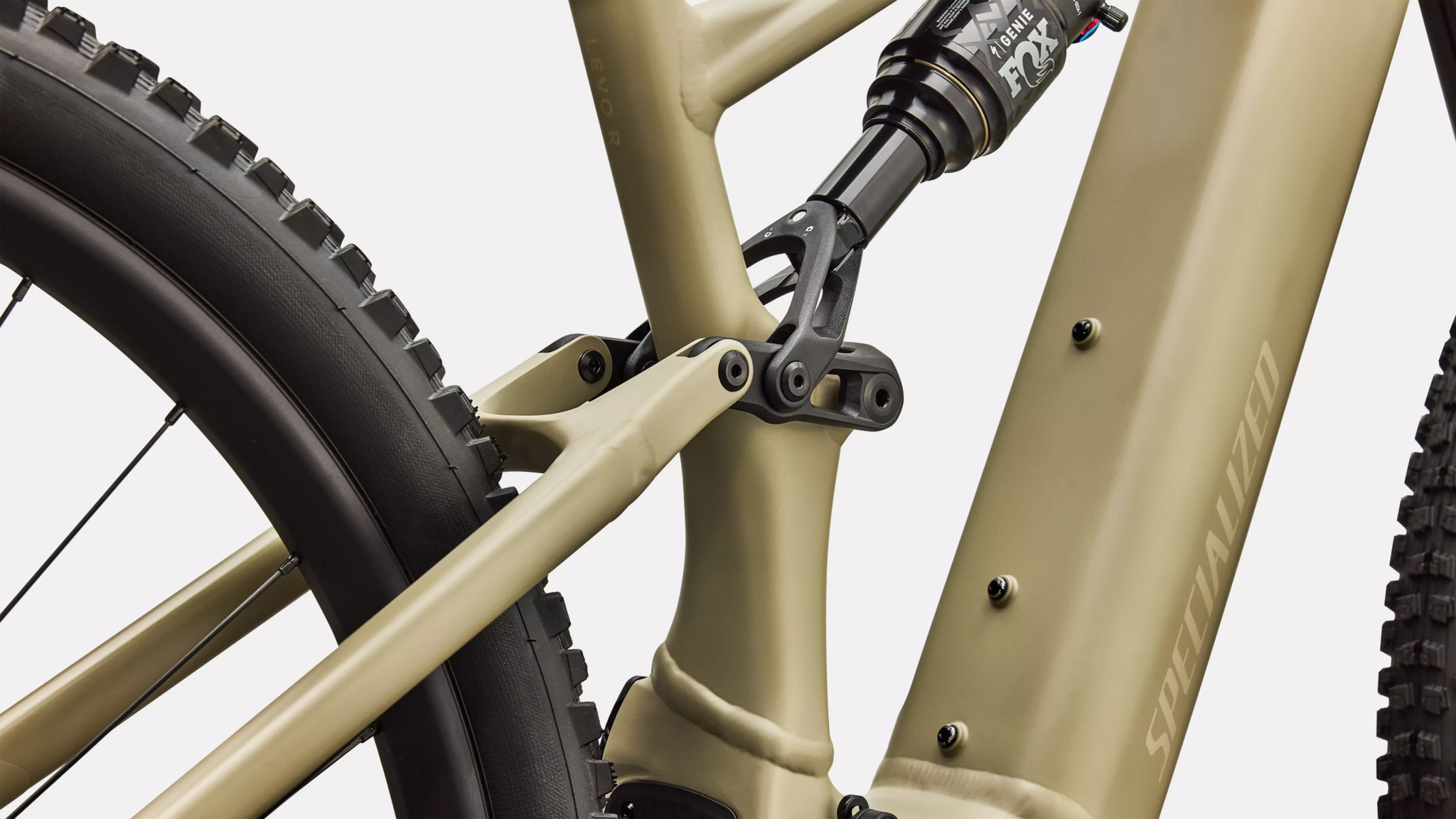

• Rear Shock: FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
• Fork: FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm

Brake

• Front Brake: SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
• Rear Brake: SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

• Shift Levers: SRAM Eagle 90T, single click, with MMX
• Rear Derailleur: SRAM Eagle 90 T-Type
• Cassette: SRAM GX Transmission, XS 1275, 10-52t
• Chain: SRAM 70 Transmission 12-Speed Flattop Chain
• Crankset: SRAM Eagle 70, BROSE/ISIS, 160mm, 32T
• Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires

• Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
• Front Hub: Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
• Rear Hub: Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-
• Axle, 32H, Xd Steel Fhb
• Spokes: DT Swiss Elemental
• Front Tire: Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
• Rear Tire: Specialized Purgatory, GRID Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
• Inner Tubes: Standard, Presta Valve

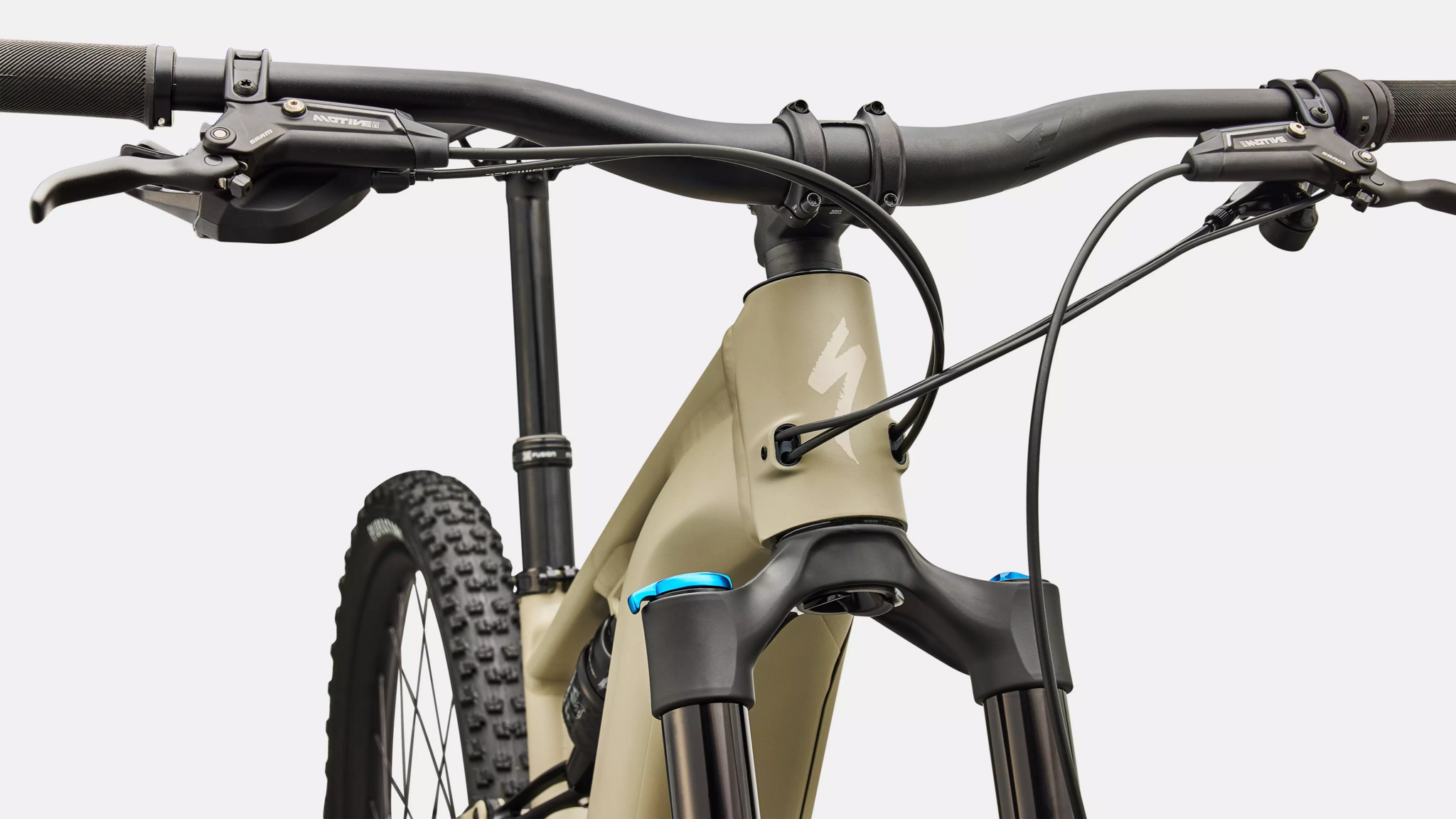

Cockpit

• Stem: Alloy Trail Stem, 35mm bar bore
• Handlebars: Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
• Grips: Specialized Trail Grips
• Saddle: Body Geometry Power Comp, steel rails
• SeatPost: X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset

Accessories

• SWAT: SWAT internal downtube storage

Product Details

• Product ID: 229898
• Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
• For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight

• Weight: 24.24 kg (53 lb, 7.0 oz)
• Weight Size: S3
