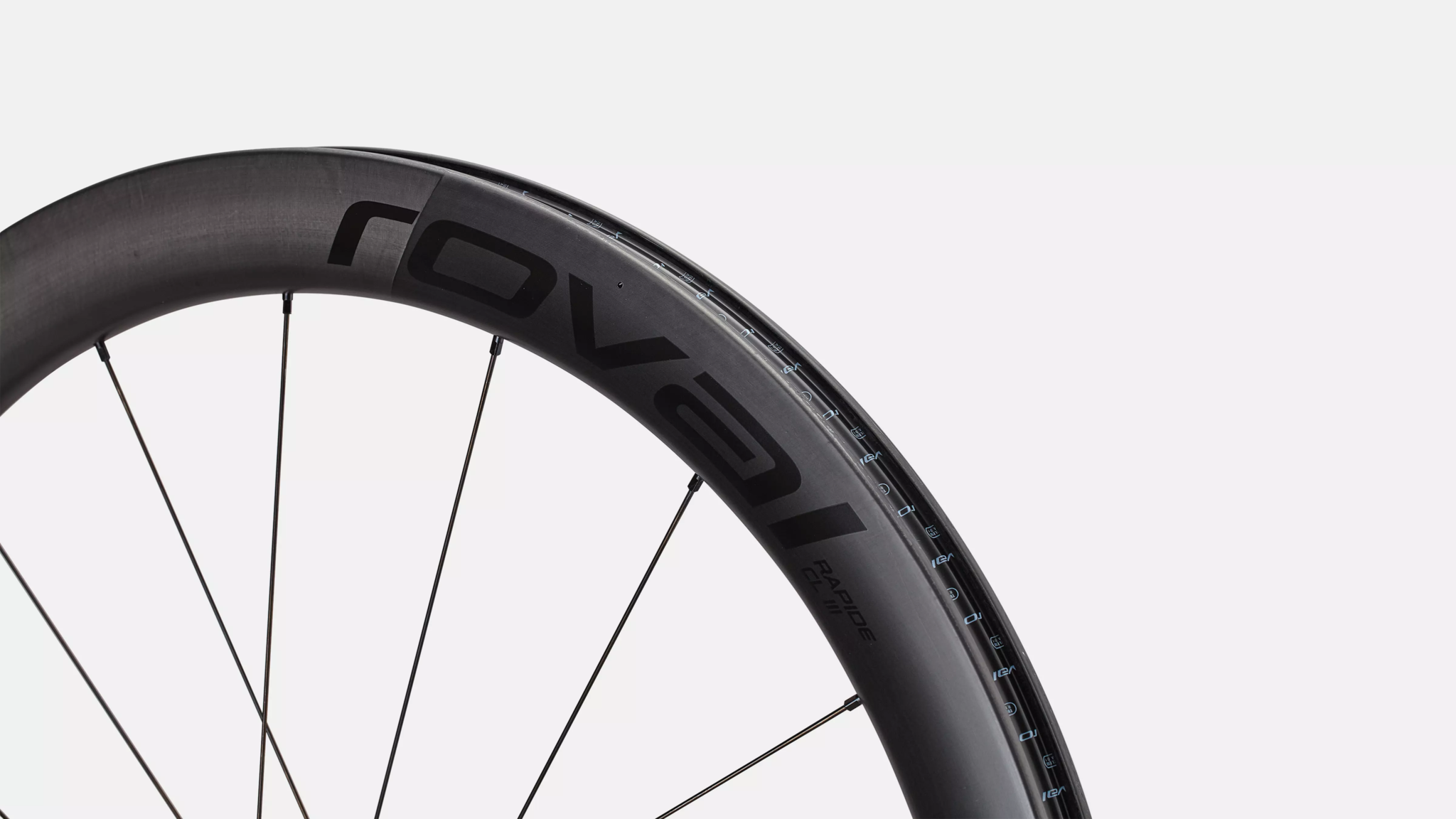

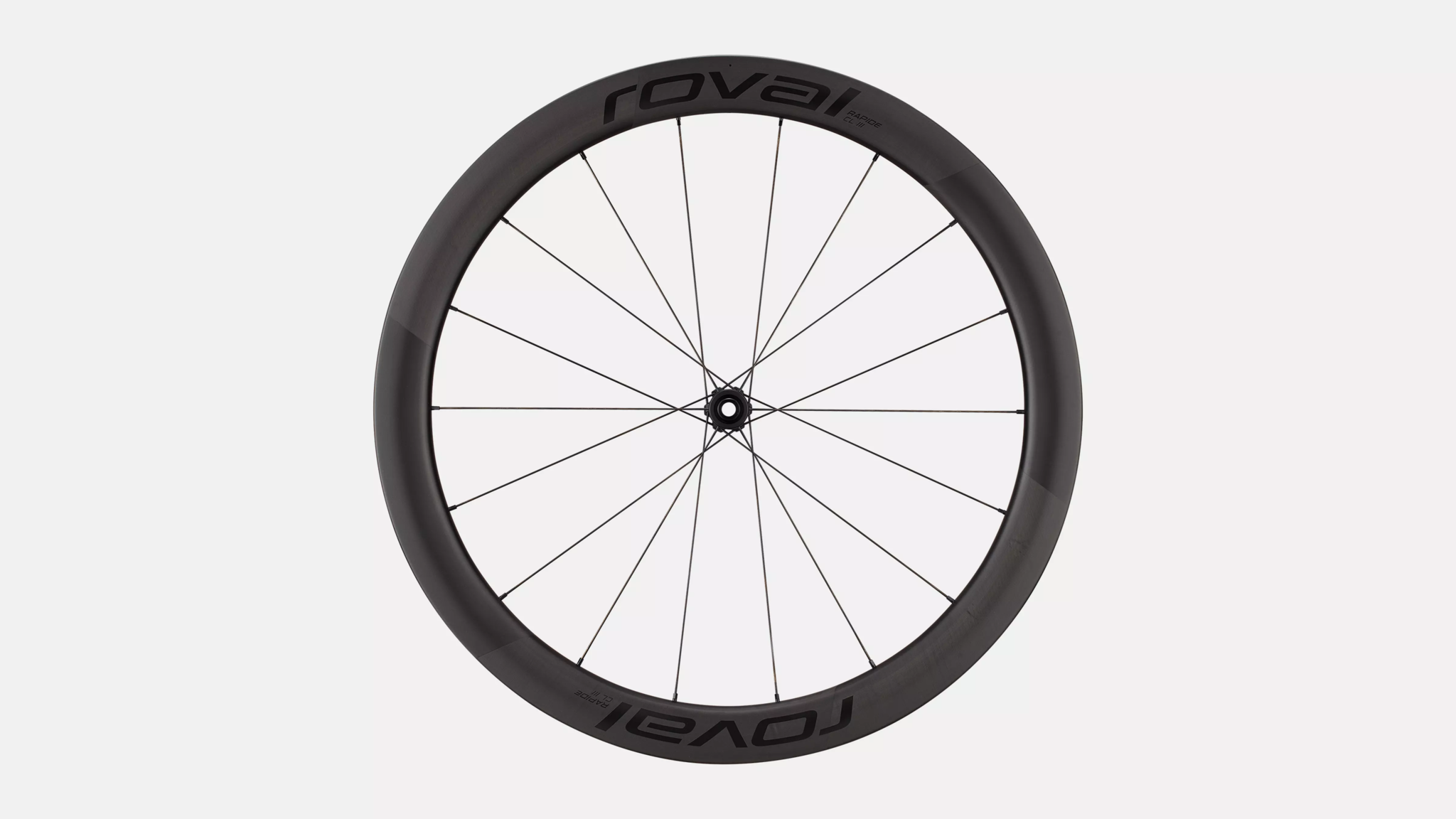

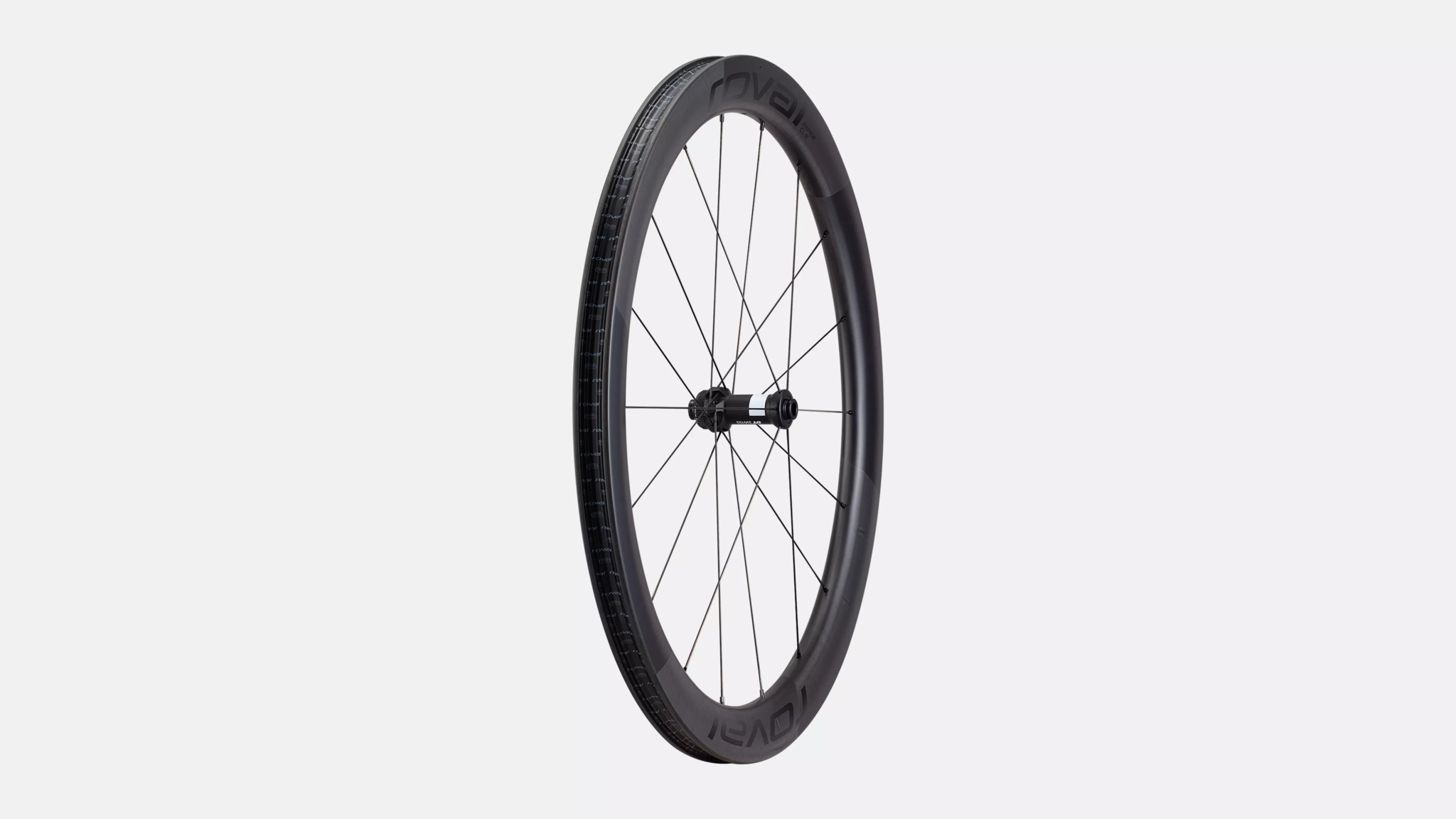

Front Rim

Rapide CLX II Carbon Clincher, 700c (CR2472)

Front Rim Dimensions

Depth: 51mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (5.5)mm

Rear Rim

Rapide CL III Carbon Clincher, 700c (CR2473)

Rear Rim Dimensions

Depth: 48mm, External Width (at widest point): 31.3mm, Internal Width: 21mm, Bead Hook Width: (4.1)mm

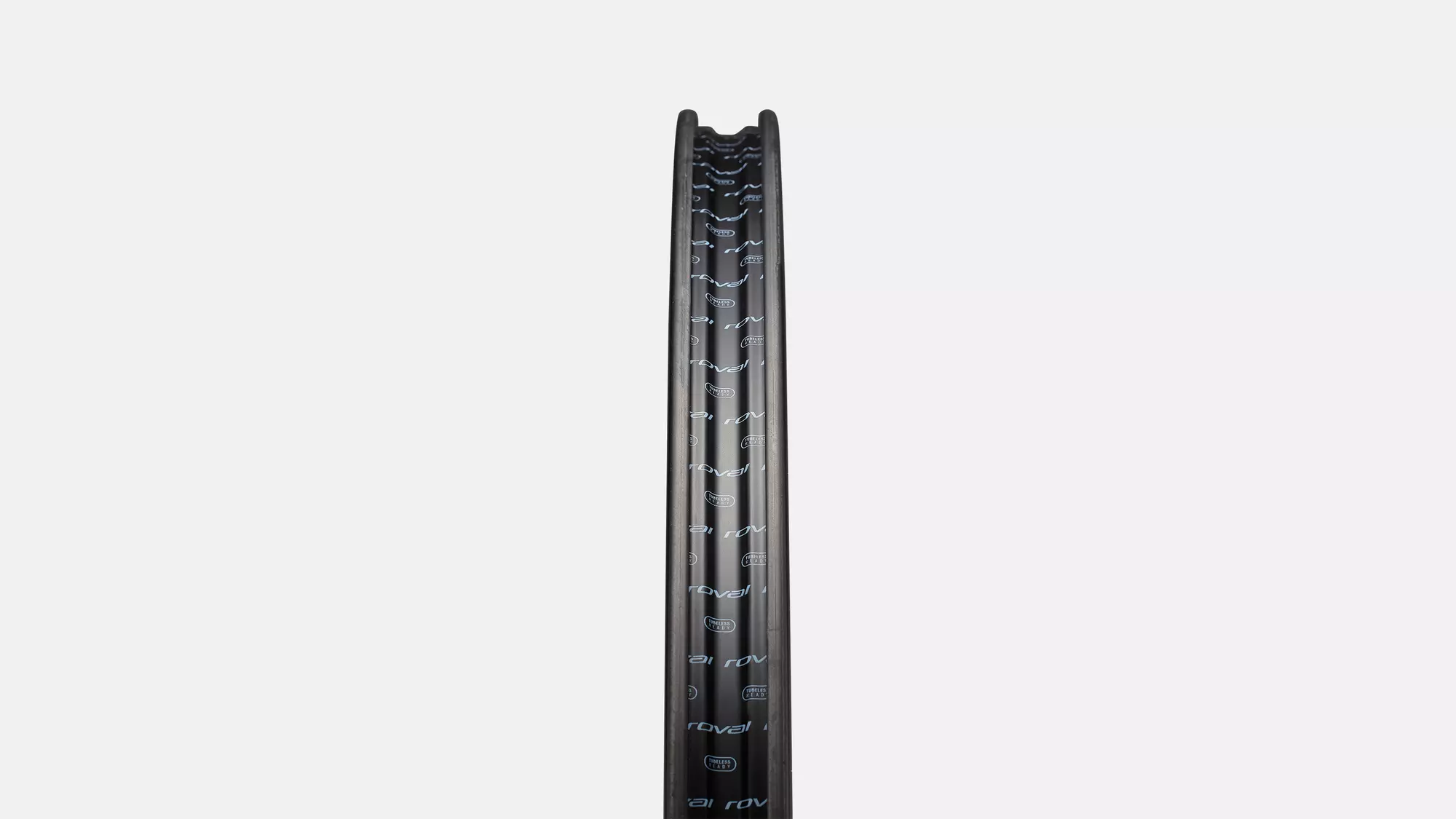

Rim Construction

Carbon Clincher Hooked

Wheel Size / ETRTO

622 × 21 (700c)

Hole Count

Front: 18H, Rear: 24H

Tubeless Compatibility

Yes

Insert Compatibility

Yes

Brake Compatibility

Disc (Centerlock)

Valve Stem Length

Roval Tubeless Vlave, Alloy 70mm

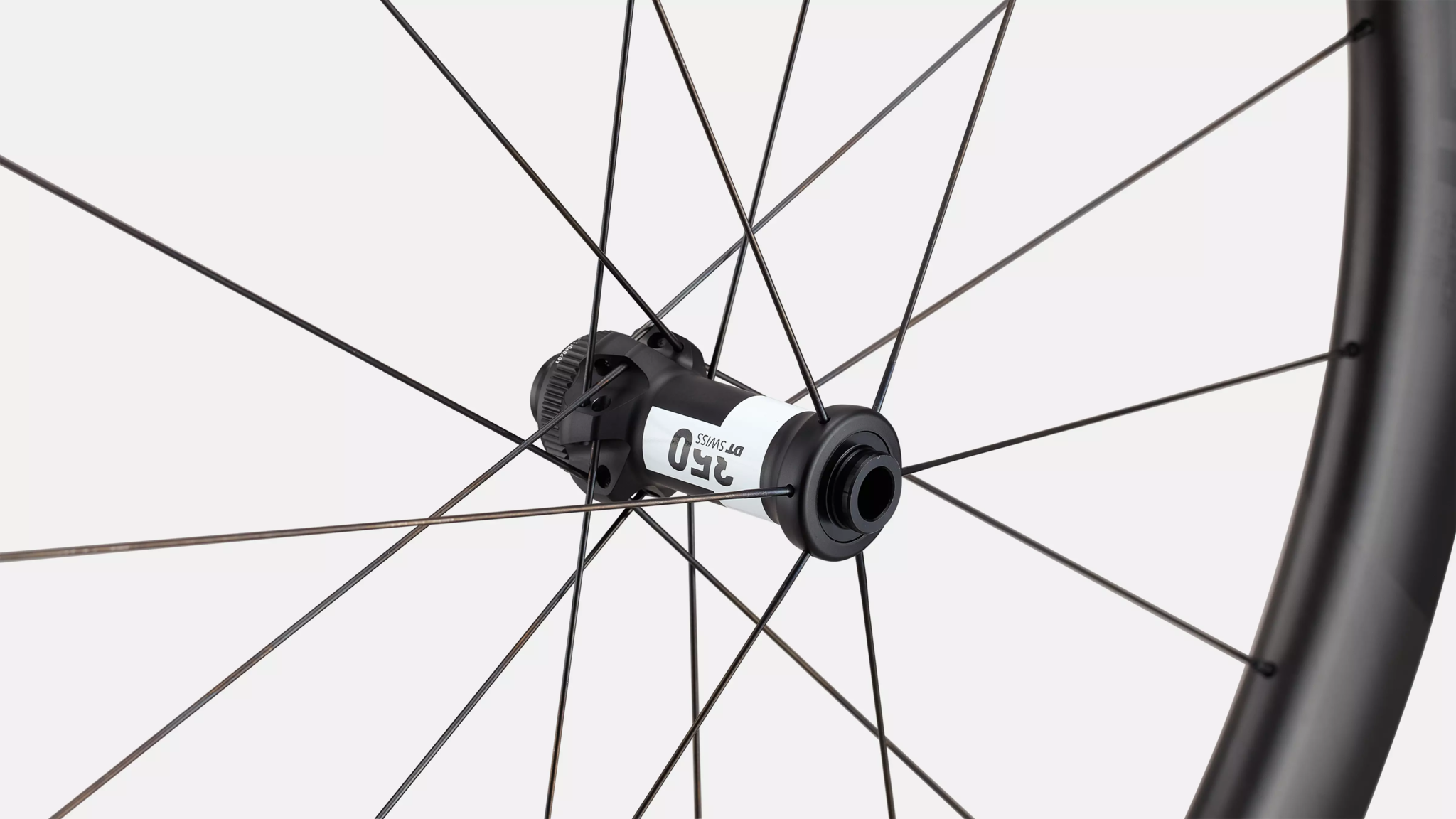

Front Hub

DT Swiss 350 Straight Pull, Center Lock, 12x100mm

Rear Hub

DT Swiss 350 Straight Pull, Center Lock, 12x142mm

Front Hub Bearing

DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

Rear Hub Bearing

DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

Rear Freehub Body

DT Swiss Ratchet (36T): Shim. RD. 11SP HG freehub

Front Spokes

DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 18qty, (DS: 258mm, NDS: 270mm)

Rear Spokes

DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 268mm, NDS: 271mm)

Front Lacing Pattern

Two-Cross / Radial (2:1), Not Tucked

Rear Lacing Pattern

One-Cross / Three-Cross (2:1), Not Tucked

Nipples

DT Swiss Hex Prolock Al 2.0x14mm

Approved Tire Widths

24mm-38mm

Max Pressure

Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)

Tire Type

Clincher Tubeless and Clincher Tube Type

Tubeless Tape Width

25mm

Design Tire

RapidAir TLR, 28mm

Front Weight

716g (with valves and tape)

Rear Weight

839g (with valves and tape)

Wheelset Weight

1555g (with valves and tape)
